Discuss! Plugin Alibaba Cloud ESA AI CAPTCHA

- Complete Discuz! X5.0 compatible, supports UTF8SC and UTF8TC encoding.
- Optimized for PHP 8 environment compatibility.
- Fixed an issue where verification code images were not displayed on the touchscreen registration, login, and password recovery pages.
- Fixed an issue where clicking verification on some login, registration, and posting pages on the desktop version would not respond.
- Fixed issues where the verification projectile close button failed, the projectile was obscured, and the mobile device displayed out of bounds.
- Optimize the width and adaptive layout of embedded CAPTCHAs.
- Once verification is passed, it will no longer be automatically submitted. The user must confirm and then click the business button to submit again.
- Added an unverified submission prompt, covering registration, login, password recovery, posting topics, posting replies, and post comments.
- Supports custom prompt switches, prompt text, display positions, colors, and styles in the background.
- Optimized the verification button status so that it no longer disappears when the verification layer pops up.
- The verification success status is simplified to "verification passed" to avoid incomplete display in the login float.
- Fixed other known issues and improved stability for the PC and touchscreen versions.

If your site has activated Alibaba Cloud EAS, please check the issued access and related instructions:

https://help.aliyun.com/zh/edge-security-acceleration/esa/getting-started/add-your-website-to-esa?spm=a2c4g.11186623.0.i1

Currently, Alibaba Cloud ESA has a free version, and registered domains support global free CDN acceleration.

For questions related to site analysis, if you are a beginner, you can also consult online customer service through Alibaba Cloud's work orders.

After you have configured the site's ESA resolution, you can follow the steps below to configure the AI CAPTCHA.

Step 1: Create AI CAPTCHA rules in Alibaba Cloud ESA

Log in to the Alibaba Cloud console and enter "Edge Safety ESA" Backstage.

Found in the left menu:

AI CAPTCHA → Configuration → Add Rule

Follow the on-page prompts to create a new AI CAPTCHA rule.

Special attention needs to be paid to this. "Interfaces requiring visa verification" Configuration.

Please enter Discuz first! In the plugin backend, copy the visa verification interface address provided by the plugin and then fill it in the corresponding location in the Alibaba Cloud ESA backend.

The plugin's signature verification interface is:

/plugin.php/fjxiaoyi_esacaptcha/verify

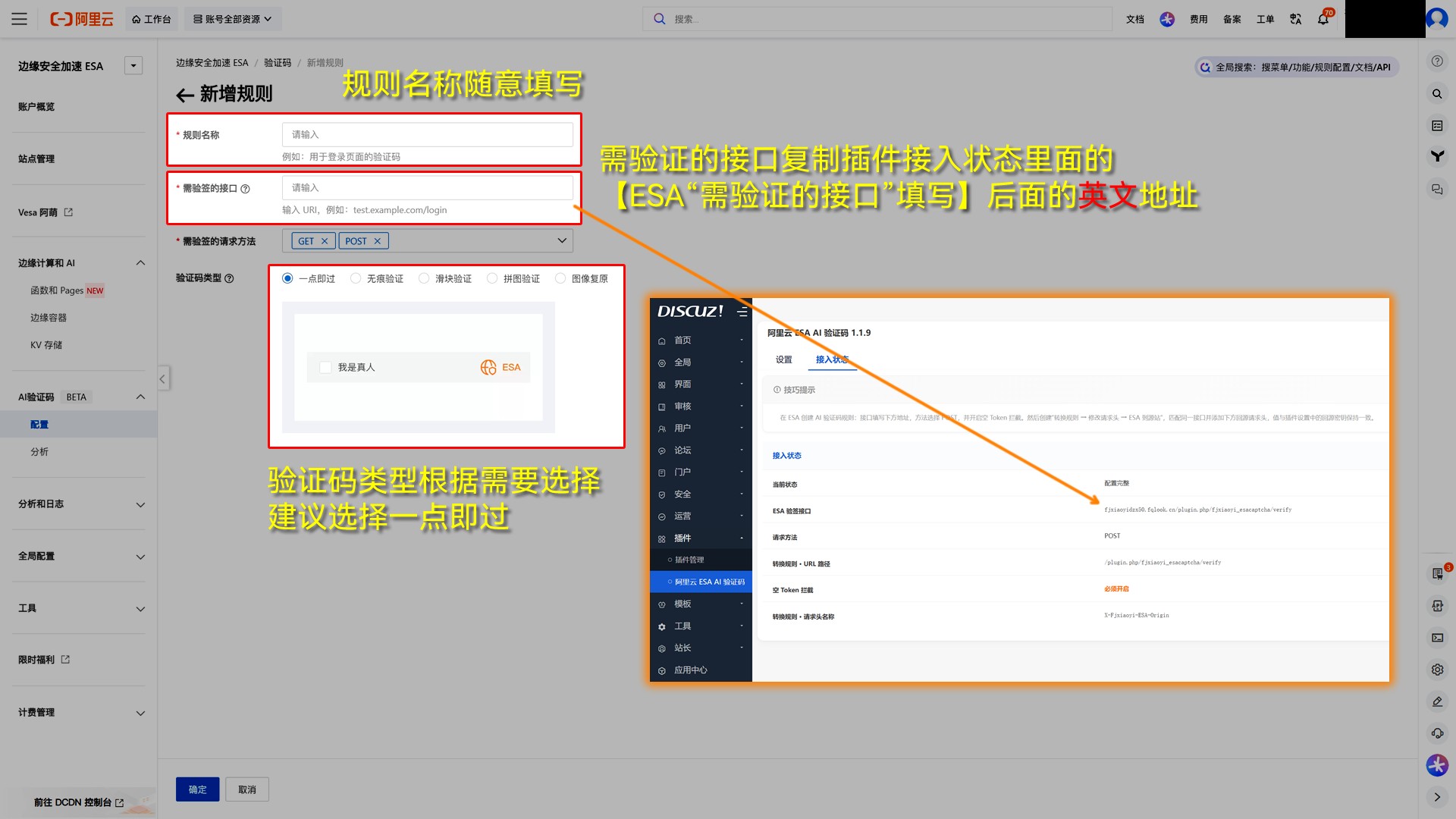

Please refer to the image below for details on how to fill out the form.

Important:
After the rule is saved, the system will prompt you whether to enable it. "Intercept Empty Token"。

You must select this option. openOtherwise, the CAPTCHA verification may fail or be bypassed.

Step 2: Fill in the scene ID and identifier

After the AI CAPTCHA rule is created, find the corresponding rule in the Alibaba Cloud ESA backend.

Copy the following two parameters:

• Scene ID
• identity identification

Then enter Discuz! In the plugin backend, fill in these two parameters in the corresponding locations and save them.

After completing the form, it is recommended to check the Alibaba Cloud ESA backend again:

Intercept Empty Tokens must remain on.

Please refer to the image below for the specific location

Step 3: Create the ESA Return-to-Source Request Header Rule

Enter the Alibaba Cloud ESA backend:

Site Management → Find the domain name that is already connected to ESA → Click to enter the site

Found on the right:

Rules → Rotation Rules → Modify Request Header

After entering, select the direction of action as:

ESA source station

Then click:

New Rules

Please refer to the image below for the specific location

Step 4: Set matching conditions

You can fill in the rule name yourself, for example:

Xiaoyi ESA AI CAPTCHA Return-to-Source Verification

Rule content selection:

custom rules

First add the first condition:

URL path → equals → /plugin.php/fjxiaoyi_esacaptcha/verify

Then click 「And」Continue to add a second condition:

Hostname → Equals → Select the domain name of the site you have already connected to Alibaba Cloud ESA.

The final rule needs to meet two conditions simultaneously

Condition 1:

URL path = /plugin.php/fjxiaoyi_esacaptcha/verify

And

Condition 2:

Hostname = The domain name of your currently configured ESA site

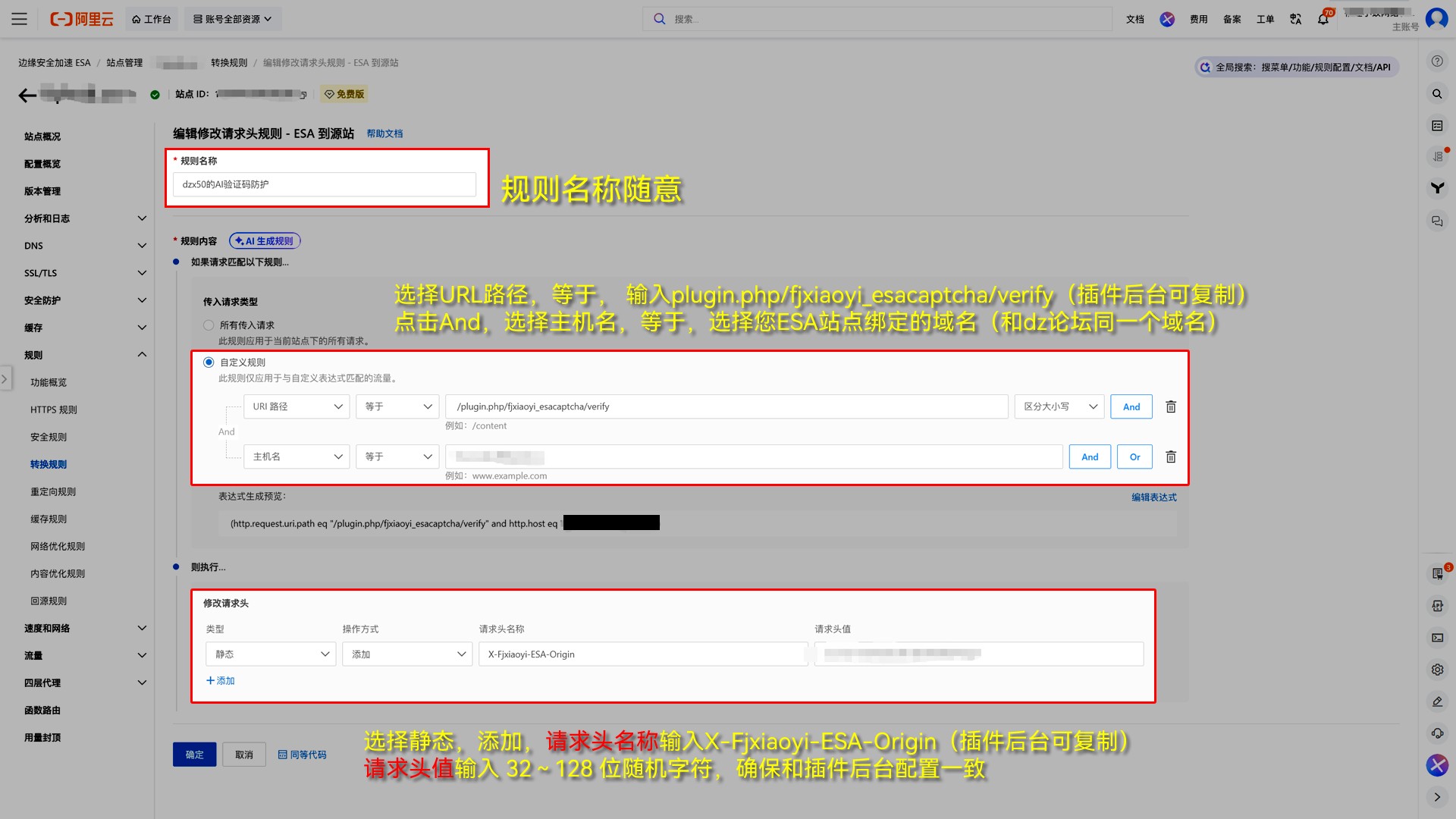

Please refer to the image below for specific configuration methods.

Step 5: Add a return source security request header

Below the rules "then execute" In the area, fill in the following parameters:

Type: static

How to operate: Add

Request Header Name:

X-Fjxiaoyi-ESA-Origin

Request header value:

Fill in oneRandomly generated 32-bit string。

For example:a8F3kL9mP2xT7qW4nR6yH1cV5sD0zB8e(This is an example, please do not use it.)

Tools:Click here to enter the 32-bit random character generator

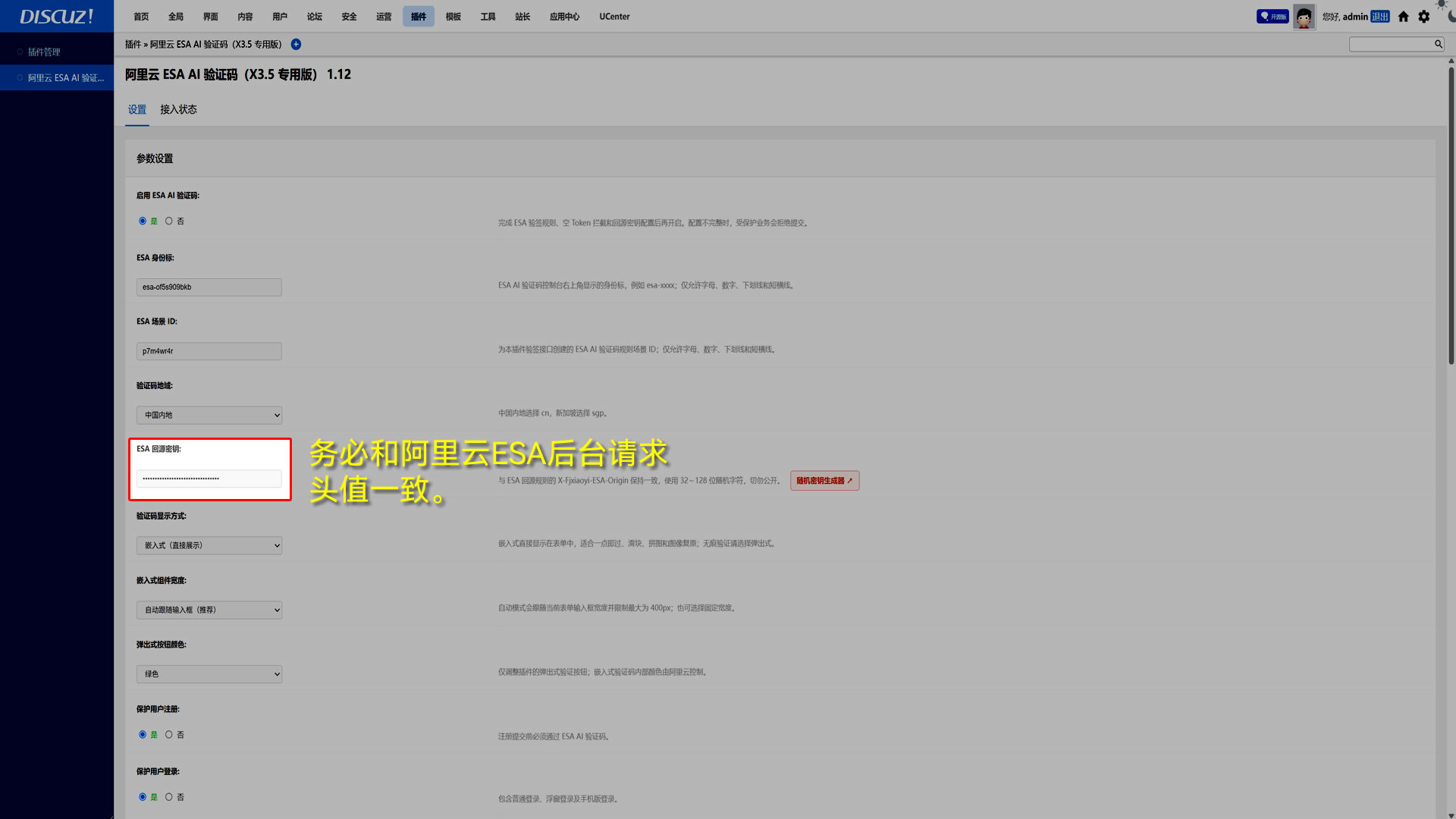

Then back to Discuz! Plugin backend, in:

ESA Return Source Key

Fill in the fieldExact same 32-bit string。

Special attention

Fill in the Alibaba Cloud ESA:

X-Fjxiaoyi-ESA-Origin

The request header value must be related to the plugin backend:

"ESA Source Key"

Exactly the same.

Including:

• Upper and lower case letters
• figure
• character order

As long as one character is different, the plugin may not be able to complete the return validation correctly.

Please check after configuration is complete.

After all settings are complete, it is recommended to confirm the following 5 items again:

1. Signature verification interface requiredIt has been filled in correctly;
2. Intercept empty TokenIt has been turned on;
3. Scene IDIt has been correctly filled in in the plugin backend;
4. identity identificationIt has been correctly filled in in the plugin backend;
5. Alibaba Cloud ESA X-Fjxiaoyi-ESA-Origin Request header value, related to the plugin backend ESA return key is completely consistent。

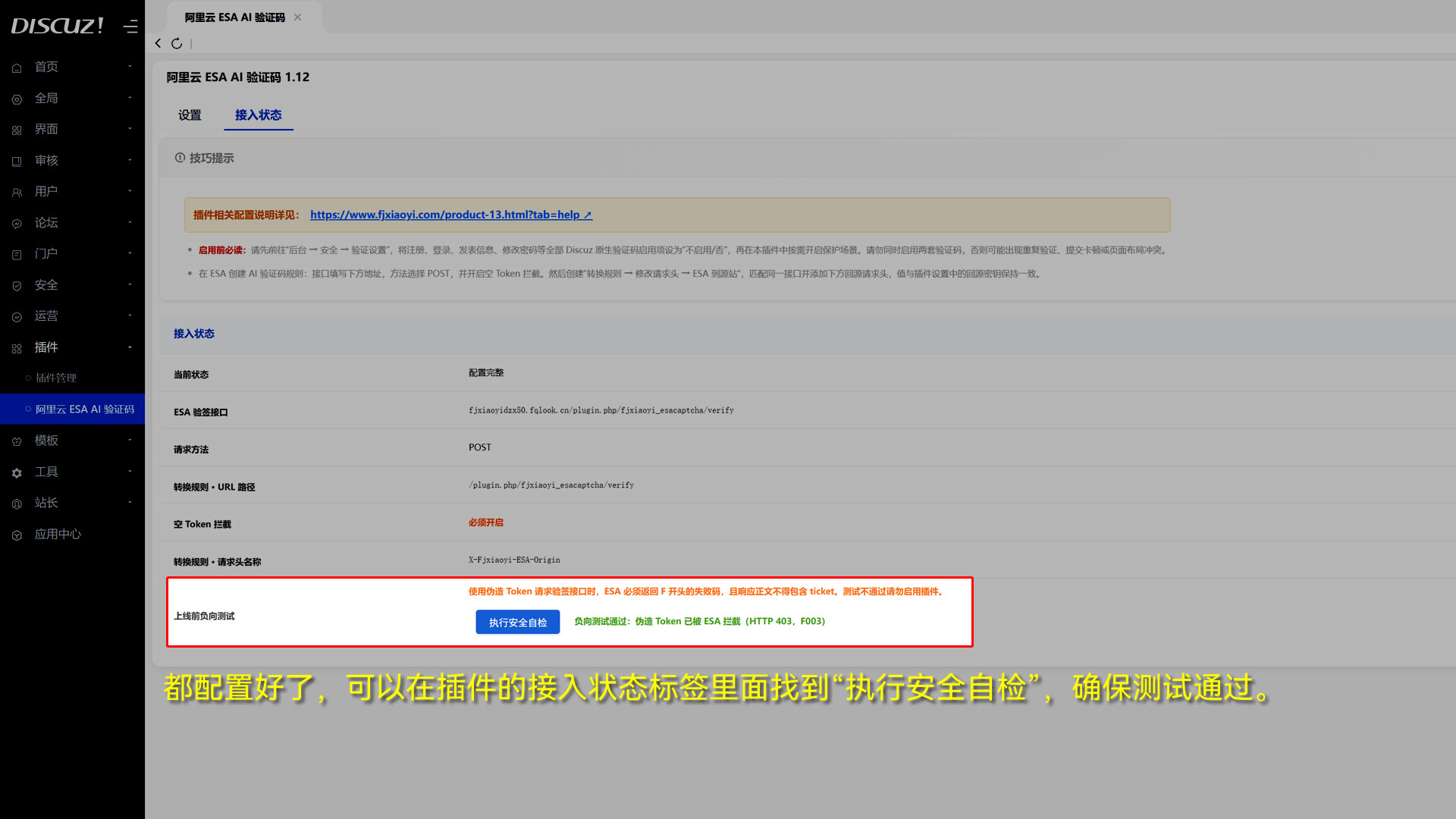

After confirming that all of the above is correct, find "Perform Security Self-Test" in the plugin's access status tab to ensure that the test passes. You can then begin testing the AI CAPTCHA feature. (Figure below)

Step 6: Enable Alibaba Cloud ESA AI verification code

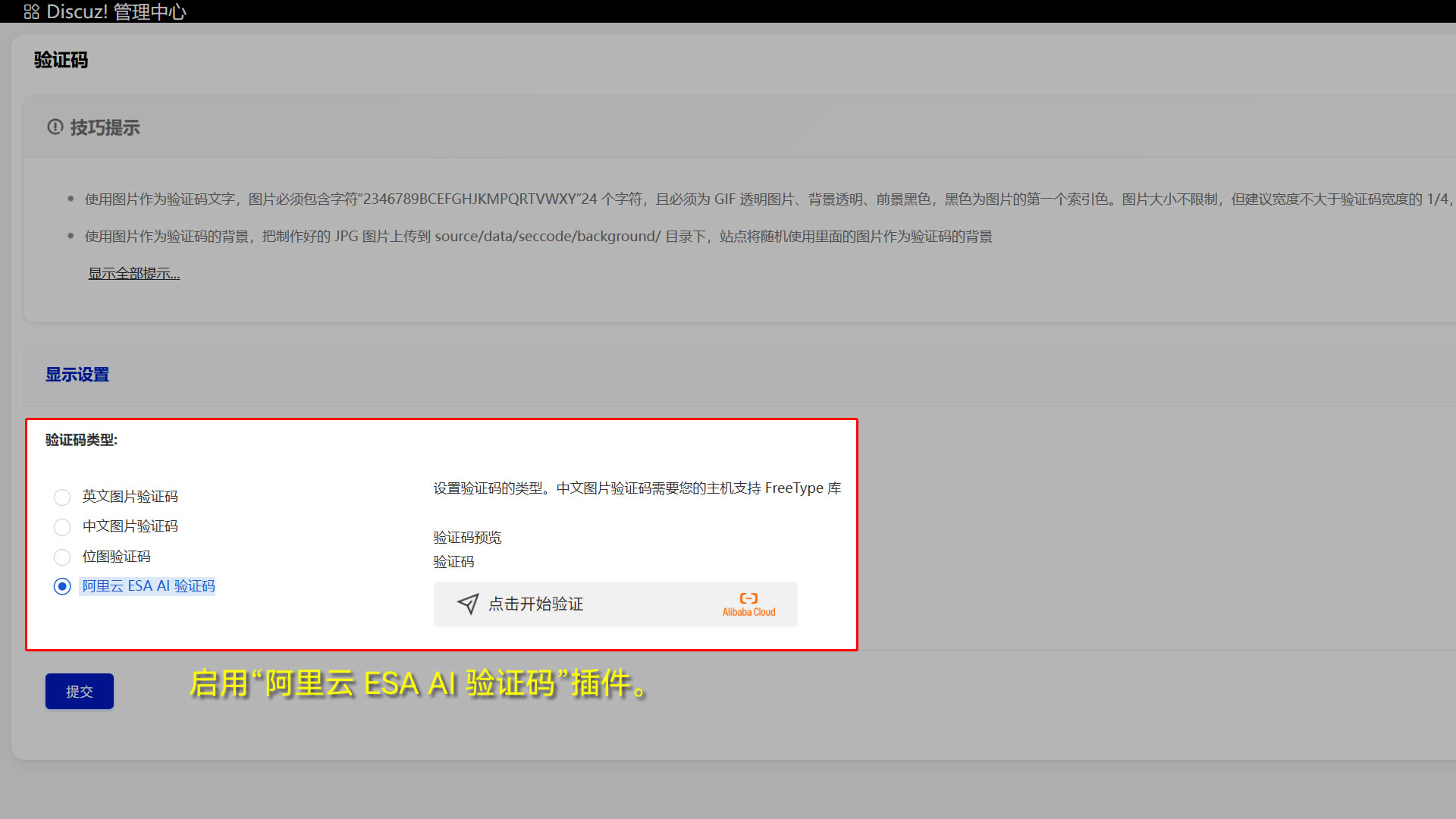

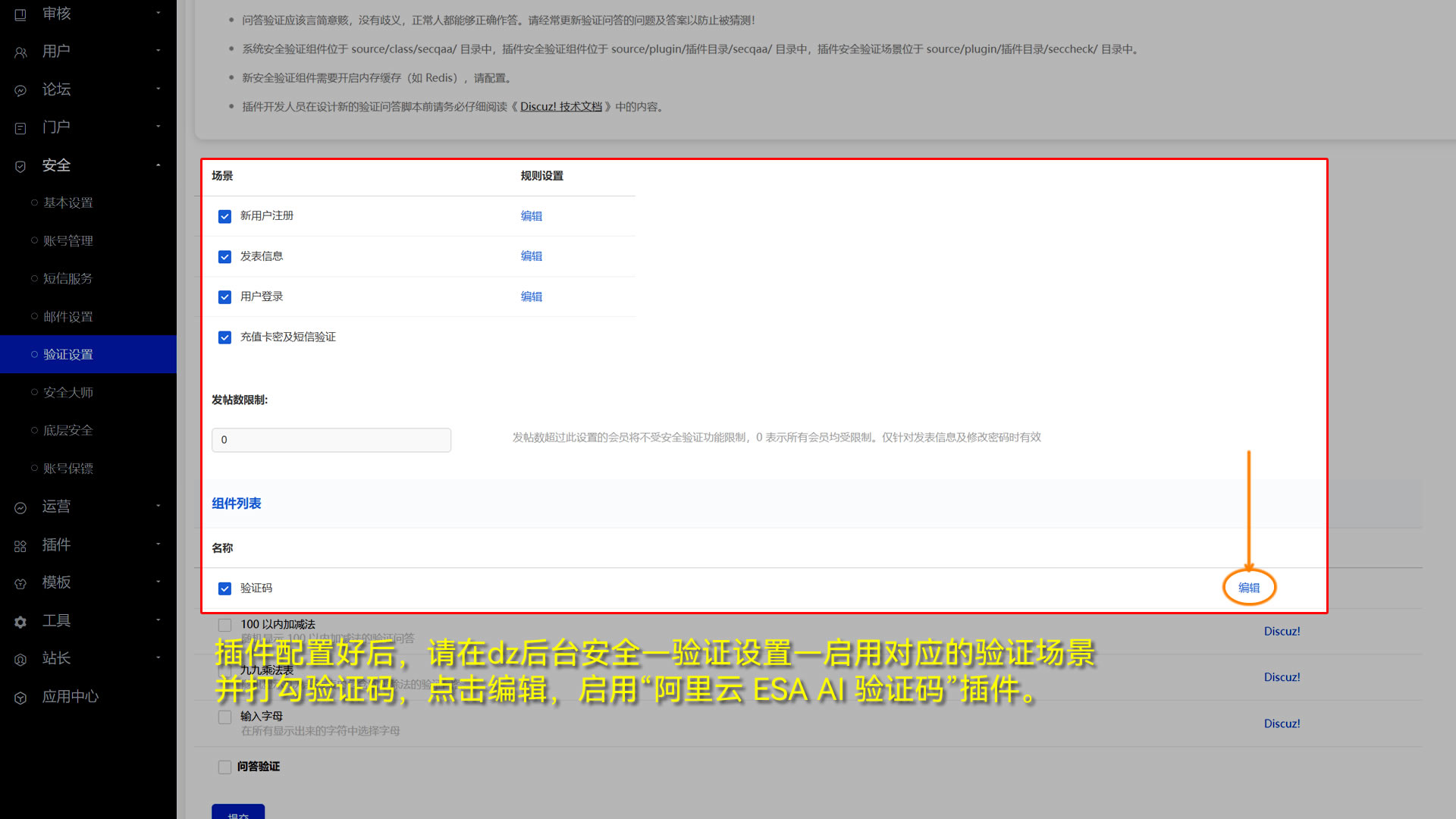

dz Backend Security - Authentication Settings - Component List - Captcha - Edit - Enable Alibaba Cloud ESA AI Captcha
